VMENG VM1000 PRO
Mini Track Loader

The all-new diesel mini track loader is built tough, delivering 1,100 lb ROC with smooth power and unmatched agility. Heavy-duty enough for demanding jobs, yet compact enough for tight spaces—all at an unbeatable value.

36" or 42” Options, Powerful Mini Track Loader
1,100lbs Rated Operating Capacity
Kubota D1105 Diesel Engine EPA 24.8 HP
Bondioli & Pavesi Piston Pumps
Poclain Plunger (Piston) Driving Motor
Optional 18.5 Gallon Multifunction Control Valve
Hydraulic Auxiliary Flow 12.68 GPM
HC Joystick and Valve for Smooth Operating

ASK FOR A QUOTE

Download Brochure pdf

Find a dealer

engine and performance
Choose between two versatile sizes: the nimble 36" width (7.8" tracks) for tight access through gates and backyards, or the stable 42" width (9.1" tracks) for enhanced traction and load-bearing confidence on rough terrain—both delivering VMENG's signature power in a compact frame.
The VM1000 features Kubota's battle-proven D1105 engine—a 24.8HP industrial diesel renowned for reliability in compact equipment. EPA-certified and optimized for 3,000 rpm operation, it delivers consistent power with Kubota's signature durability, ensuring years of trouble-free service in demanding conditions.
The plunger driving motor delivers unmatched hydraulic performance, handling up to 5,800 psi for extreme power and reliability. Outperforming standard motors, it ensures stronger force, smoother operation, and extended durability—even in rugged terrains and heavy-duty applications. Built for efficiency and endurance, it’s the ultimate choice for demanding tasks.

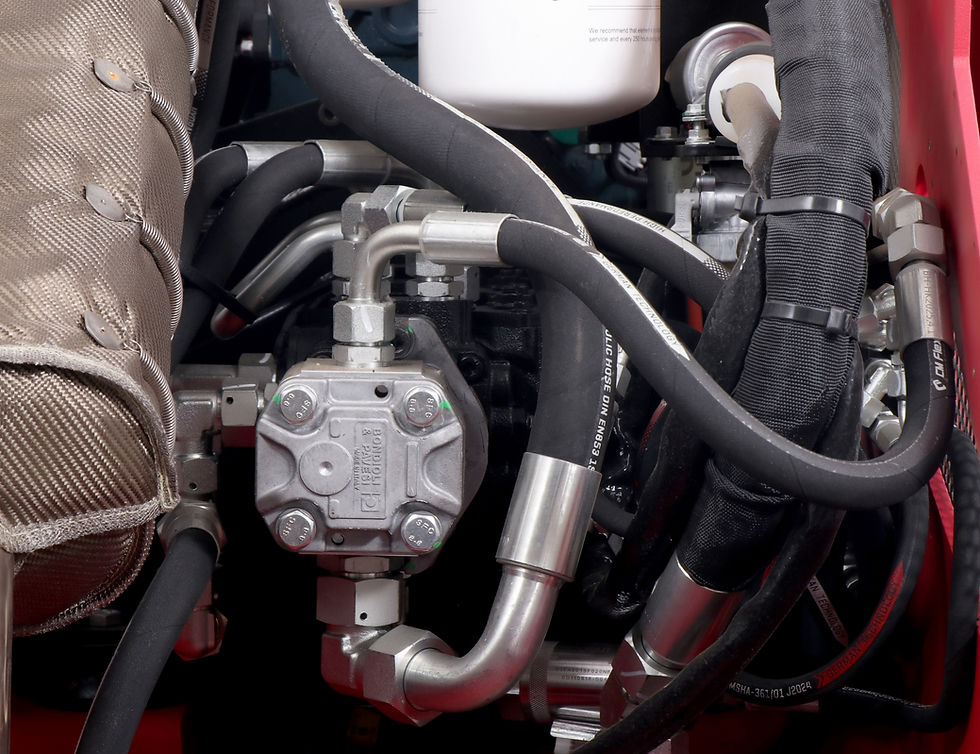

The Italian-engineered Bondioli & Pavesi Piston Pump delivers precision displacement control for superior straight-line tracking and operational stability. Renowned for exceptional reliability and extended service life, this high-performance pump ensures consistent power delivery in demanding applications. Its robust design and exacting tolerances make it the premium choice for professional-grade equipment.
The Italian-engineered Bondioli & Pavesi Piston Pump delivers precision displacement control for superior straight-line tracking and operational stability. Renowned for exceptional reliability and extended service life, this high-performance pump ensures consistent power delivery in demanding applications. Its robust design and exacting tolerances make it the premium choice for professional-grade equipment.
The ergonomic grip and hydraulic pilot control joystick layout minimize fatigue during long shifts. Hydro Control's pilot valve enables instant speed adjustments while maintaining precise steering response. Every control is optimized for efficiency and safety in demanding terrain.
With strong load resistance and wear reduction, this design enhances durability, minimizes maintenance, and ensures seamless compatibility with CII and other brands.
The heavy-duty boom with protected internal hydraulic lines offers enhanced durability, making it ideal for high-intensity tasks with greater longevity and reduced maintenance needs.
VMENG's non-aggressive tread minimizes ground disturbance without sacrificing traction. Integrated anti-vibration technology ensures operator comfort during long shifts. Built with rugged materials, these tracks deliver smooth, durable performance across all terrains - protecting surfaces while maintaining machine productivity.

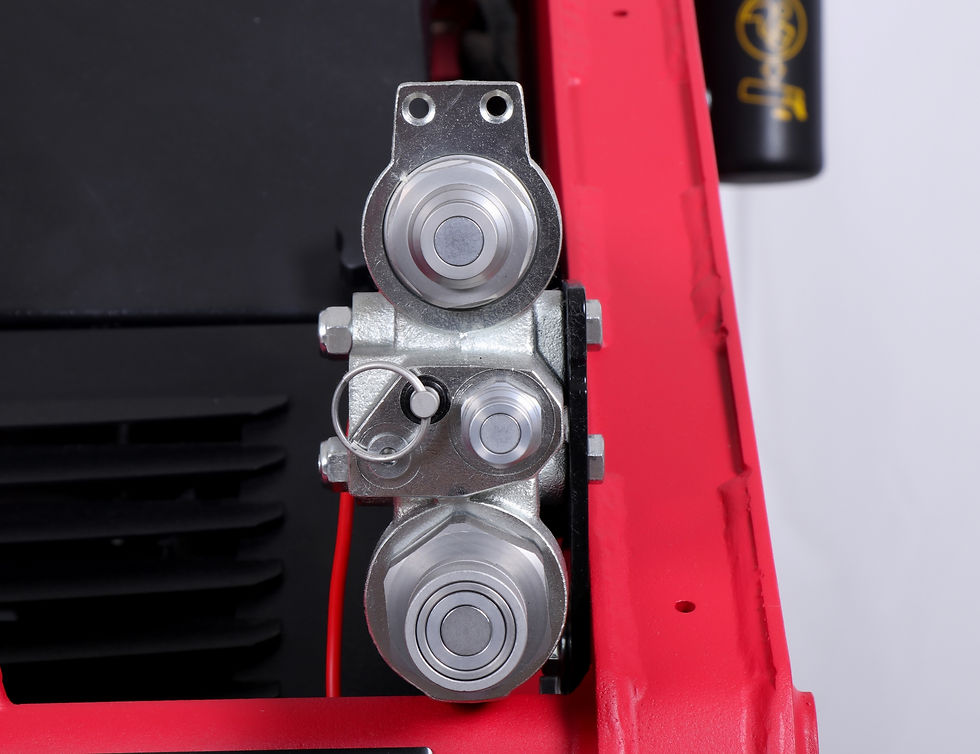

The quick pressure relief mechanism prevents residual pressure buildup in attachments during disconnection, ensuring easy reattachment. Combined with case strain protection that avoids overflow, this system maintains hydraulic integrity while enabling fast, safe attachment changes even under high-pressure conditions.

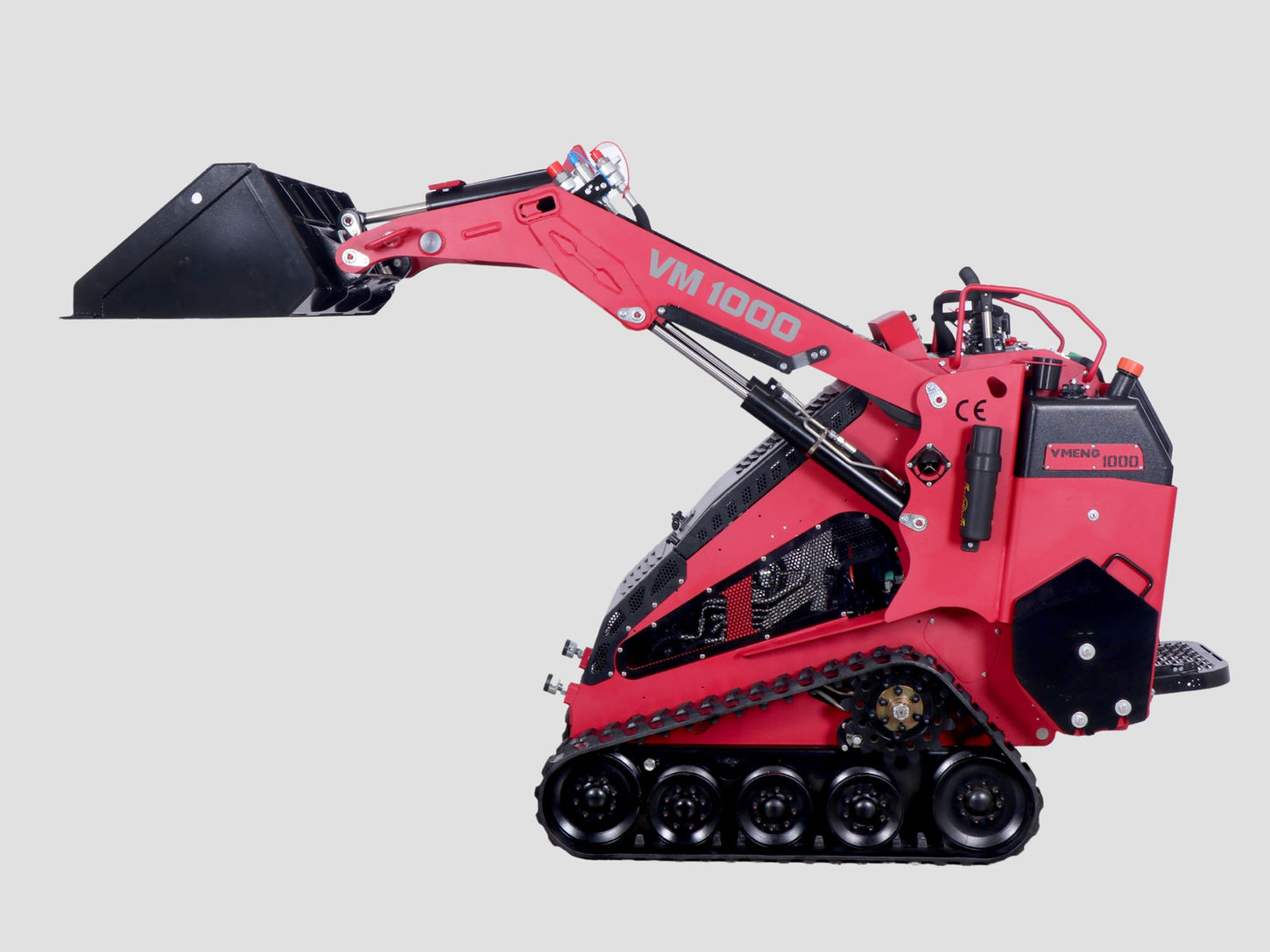

The floating function allows the loader arms to follow ground contours automatically, ensuring consistent contact for finishing work like grading or snow removal. This feature reduces operator effort while improving surface quality, with the system maintaining optimal downforce without manual adjustments.
With a smooth, rust-resistant finish that resists scratches, it maintains a lasting, professional look for a tough and polished appearance.
The independent chassis, with a tank-style design, evenly distributes weight for enhanced stability and durability, while anti-vibration tracks improve comfort and reduce operator fatigue.
safety and comfort
The suspended standing platform combines heavy-duty spring absorption with elevated visibility. Its dampened design reduces fatigue on rough terrain while providing clear sightlines to the worksite and attachment points—ensuring precise coupling and total control without blind spots or guesswork during operation.
The VM1000 keeps operators informed with essential gauges: water temperature, hydraulic oil level, diesel level, and hour meter. This critical data ensures optimal performance awareness, allowing for timely maintenance and preventing costly downtime due to overheating, low fluids, or service intervals.

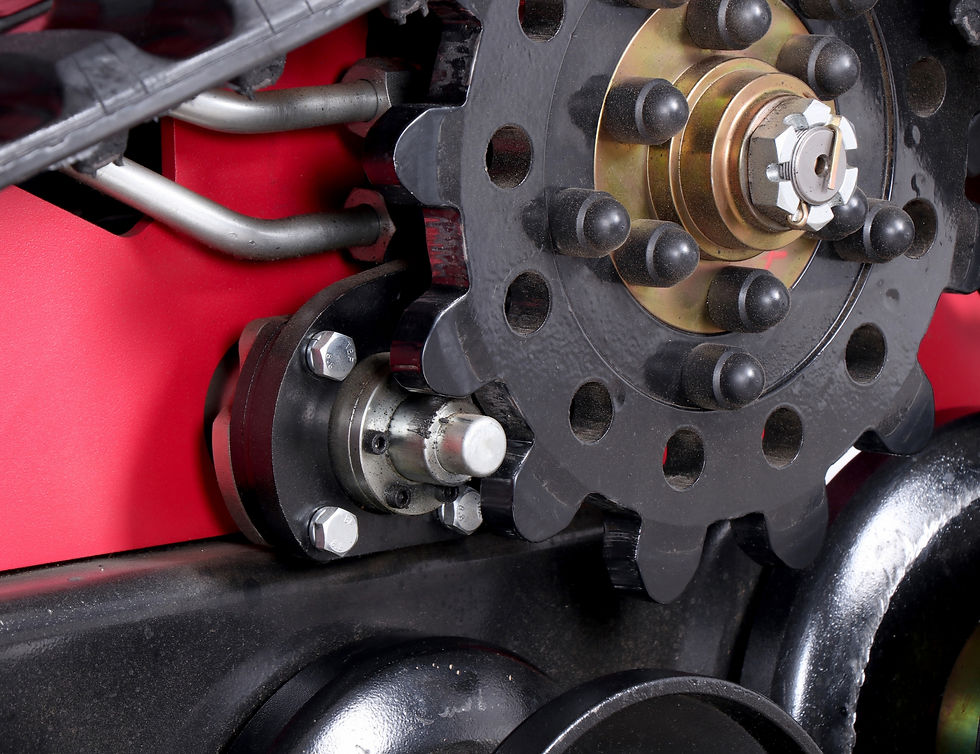

The parking lock engages automatically when the machine shuts off, with optional manual activation. This dual-mode system securely maintains position even on slopes, preventing unintended movement during stops or while parked on inclines.

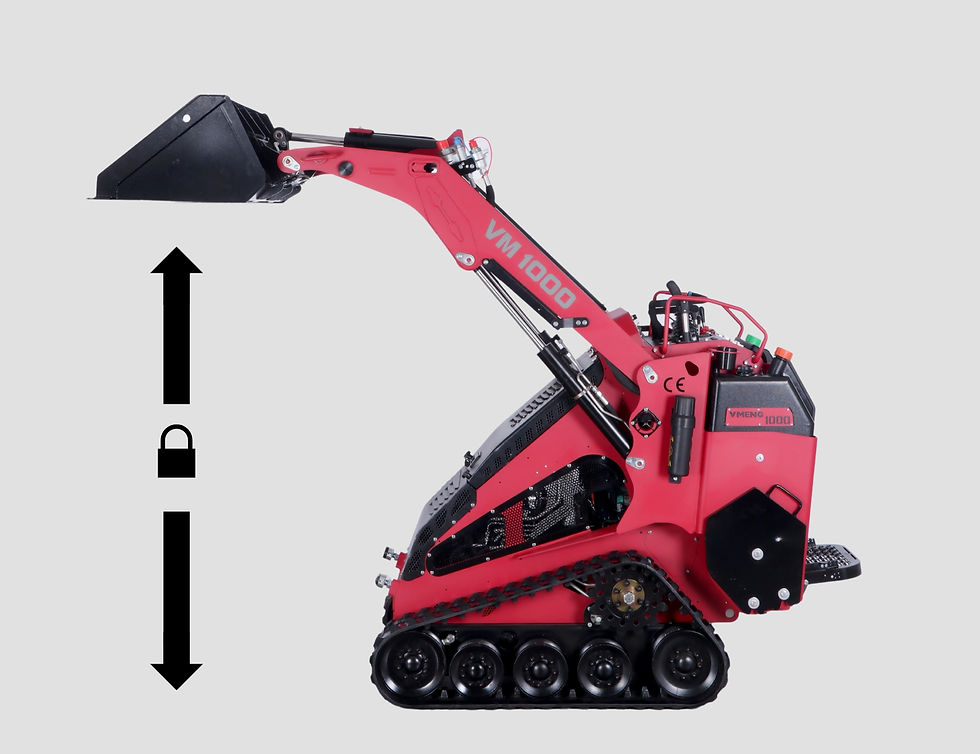

The boom lock engages during operation to temporarily disable hydraulic movement, instantly freezing the boom position when activated. This allows safe personnel access or precise load adjustment without risking accidental contact from hydraulic drift or control errors.
The operator-worn emergency kill switch automatically shuts down the machine if the tether is detached—stopping all functions instantly if the operator falls or moves beyond safe range. This failsafe protection prevents runaway equipment situations, ensuring immediate shutdown during slips, falls, or loss of control.
The 3-point contact rule ensures safe climbing on and off the machine by keeping two hands and one foot in constant contact with steps/handholds. This simple but critical practice prevents slips and falls during entry and exit.

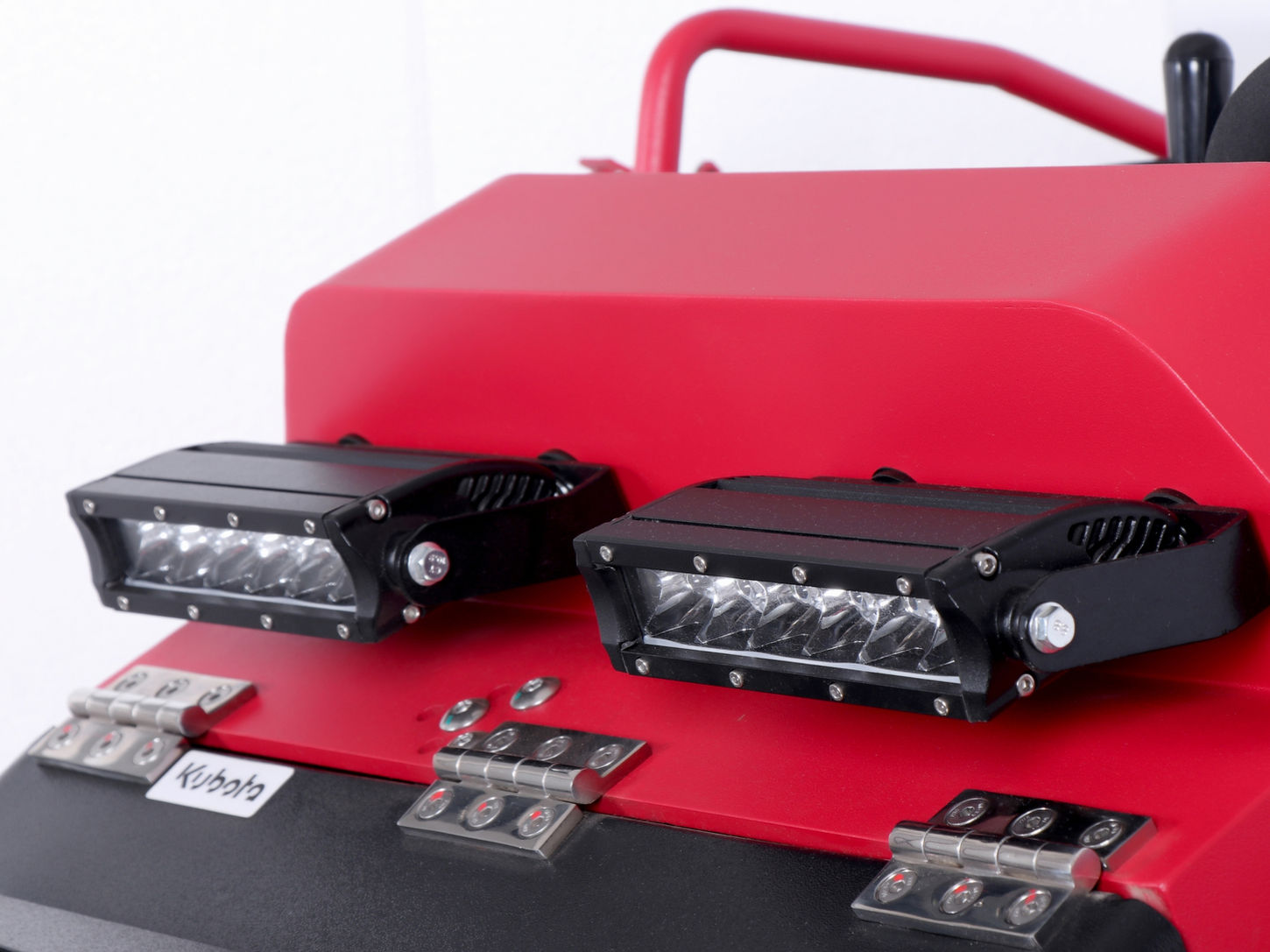

High-intensity LED lights dramatically improve nighttime visibility, illuminating worksites and pathways for safer operation in low-light conditions. Their bright, focused beams enhance spatial awareness while reducing eye strain—ensuring confident machine navigation and hazard detection after dark.
The auxiliary hose guide secures hydraulic lines in proper alignment, preventing tangles and abrasion from branches or debris. By maintaining smooth hydraulic flow and protecting hoses from damage, it extends component lifespan while eliminating safety hazards from loose or whipping hoses.
warranty and serviceability
VMENG backs your investment with a comprehensive 1-year warranty covering both parts and labor. This industry-leading protection ensures worry-free operation.
Thoughtful engineering provides easy access to all critical components—including air, fuel, and hydraulic filters, plus pumps, batteries, and valves. This streamlined layout simplifies routine maintenance and servicing, reducing downtime and keeping your machine running at peak performance with minimal effort.
Removable side panels provide full access to the engine bay and hydraulic components, simplifying maintenance and inspections.
VMENG’s maintenance-free track system combines sealed rollers and automatic tensioning to withstand extreme conditions. The rugged, pre-lubricated rollers and self-adjusting mechanism maintain perfect track tension—eliminating grease intervals and manual adjustments while extending undercarriage lifespan.
Integrated tie-down points provide secure anchoring during transport, keeping the loader firmly positioned on trailers. These reinforced anchor points prevent shifting or movement, ensuring safe and stable transit.
Strategically placed grease fittings are positioned within easy reach, streamlining routine maintenance. These clearly marked zerk fittings require no contortions or tool extensions, cutting lubrication time in half while ensuring proper component care.
